本文介紹如何使用TPU-MLIR將在stable diffusion的模型移植到算能BM1684X上，并介紹其部署的方法。由于stable diffusion包含多個版本，我們這里以stable diffusion 1.5版本為例。

stable diffusion模型介紹

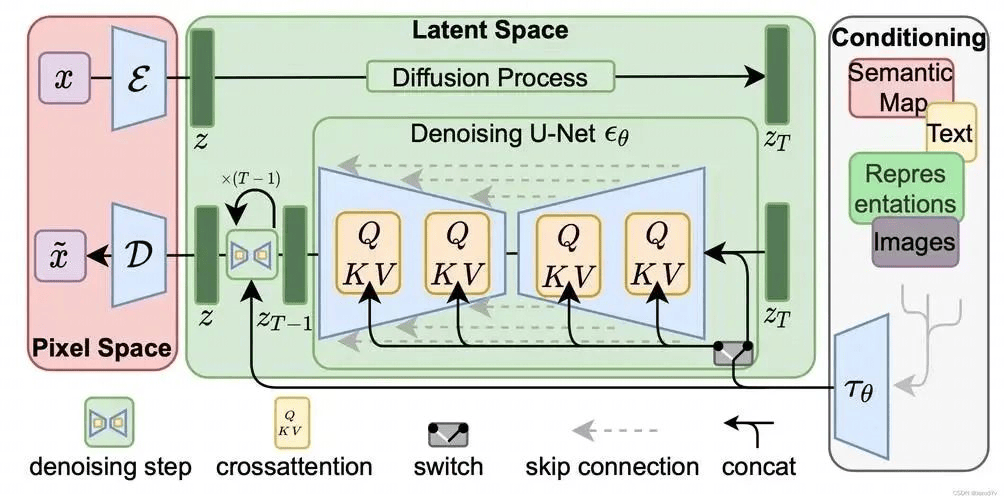

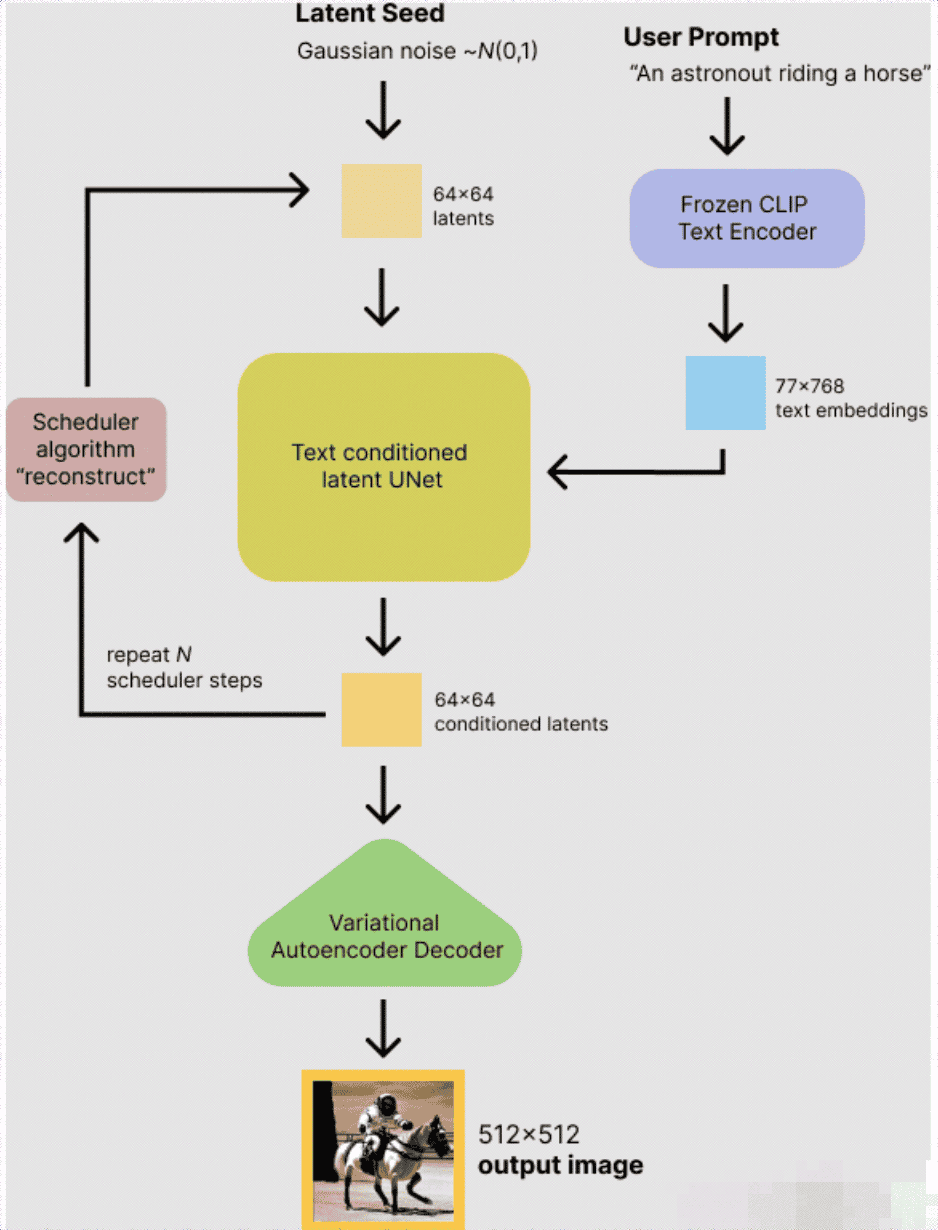

stable diffusion 由3個部分組成，分別是text_encoder、unet和vae。其中3個部分方便使用的模型是：CLIP_ViT, Latent Diffusion Models和AutoencoderKL VAE。模型運行流程如下圖所示：

移植stable diffusion需要將3個部分的模型分別移植到算能處理器上，并將3個部分的模型串起來，得到一個完整的stable diffusion。

?

模型移植

獲取模型

可以通過hugging face來獲取stable diffusion v1.5版本的模型，具體的方法如下：

from?diffusers?import?StableDiffusionPipeline
import?torch

model_id?=?"runwayml/stable-diffusion-v1-5"
pipe?=?StableDiffusionPipeline.from_pretrained(model_id,?torch_dtype=torch.float16)

參考： https://huggingface.co/runwayml/stable-diffusion-v1-5 hugging face官網鏈接。

?

移植text_encoder

這里可以將text_encoder模型轉為onnx模型，然后構造轉換腳本，將onnx模型轉換為bmodel模型。

轉換為onnx模型

def?export_textencoder(pipe):
????for?para?in?pipe.text_encoder.parameters():
????????para.requires_grad?=?False
????batch?=?1
????fake_input?=?torch.randint(0,?1000,?(batch,?77))
????onnx_model_path?=?"./encoder.onnx"
????torch.onnx.export(pipe.text_encoder,?fake_input,?onnx_model_path,?verbose=True,?opset_version=14,?input_names=["input_ids"],?output_names=["output"])

export_textencoder(pipe)

通過構造一個batch為1的fake_input，然后將text_encoder模型使用torch.onnx.export轉換為onnx模型。

構造轉換腳本

model_transform.py??--model_name?encoder??--input_shape?[[1,77]]??--model_def?encoder.onnx??--mlir?encoder.mlir
model_deploy.py??--mlir?encoder.mlir??--quantize?F32??--processor?bm1684x??--model?text_encoder_1684x_f32.bmodel

執行這個轉換腳本，可以將onnx模型轉換為bmodel模型。

?

移植unet

這里可以將unet模型轉為pt模型，然后構造轉換腳本，將pt模型轉換為bmodel模型。 需要注意的是如果unet會(huì )接上controlnet作為插件的話，其轉換方式有一定的差異。

轉換為pt模型

def?myunet(self,?latent,?timestep,?encoder_hidden_states):
????return?self.unet(latent,?timestep,?encoder_hidden_states=encoder_hidden_states)

def?export_unet(pipe):
????img_size?=?(512,?512)
????latent_model_input?=?torch.rand(2,?4,?img_size[0]//8,?img_size[1]//8)
????t?=?torch.tensor([999])
????prompt_embeds?=?torch.rand(2?77,?768)
????fake_input?=?(latent_model_input,?t,?prompt_embeds)
????jit_model?=?torch.jit.trace(myunet,?fake_input)
????jit_model.save("unet.pt")

通過構造一個batch為2的fake_input，然后將unet模型使用torch.jit.trace轉換為pt模型。這里batch為2是應該考慮到negative prompt和positive prompt兩種情況，所以模型采用了batch為2的方式。

構造轉換腳本

model_transform.py??--model_name?unet??--input_shape?[[2,4,64,64],[1],[2,77,768]]??--model_def?unet.pt??--mlir?unet.mlir
model_deploy.py??--mlir?unet.mlir??--quantize?F16??--processor?bm1684x??--model?unet_1684x_f16.bmodel

?

移植vae

vae在stable diffusion中是拆開的，分為encoder和decoder兩個部分，這里可以將encoder和decoder分別轉為pt模型，然后構造轉換腳本，將pt模型轉換為bmodel模型。

?

移植vae encoder

轉換為pt模型

def?export_vaencoder(pipe):
????for?para?in?pipe.vae.parameters():
????????para.requires_grad?=?False

????vae?=?pipe.vae

????class?Encoder(torch.nn.Module):
????????def?__init__(self):
????????????super().__init__()
????????????self.encoder1?=?vae.encoder
????????????self.encoder2?=?vae.quant_conv
????????
????????def?forward(self,?x):
????????????x?=?self.encoder1(x)
????????????x?=?self.encoder2(x)
????????????return?x
????encoder?=?Encoder()
????img_size?=?(512,?512)
????img_size?=?(img_size[0]//8,?img_size[1]//8)
????latent?=?torch.rand(1,3,?img_size[0]*8,?img_size[1]*8)
????jit_model?=?torch.jit.trace(encoder,?latent)
????encoder_model_path?=?'./'?+?"vae_encoder"?+?'.pt'
????jit_model.save(encoder_model_path)

構造轉換腳本

model_transform.py??--model_name?vae_encoder??--input_shape?[[1,3,512,512]]??--model_def?vae_encoder.pt??--mlir?vae_encoder.mlir
model_deploy.py??--mlir?vae_encoder.mlir??--quantize?F16??--processor?bm1684x??--model?vae_encoder_1684x_f16.bmodel

?

移植vae decoder

轉換為pt模型

def?export_vaedecoder(pipe):
????for?para?in?pipe.vae.parameters():
????????para.requires_grad?=?False
????vae?=?pipe.vae
????class?Decoder(torch.nn.Module):
????????def?__init__(self):
????????????super().__init__()
????????????self.decoder2?=?vae.post_quant_conv
????????????self.decoder1?=?vae.decoder
????????
????????def?forward(self,?x):
????????????x?=?self.decoder2(x)
????????????x?=?self.decoder1(x)
????????????return?x
????decoder?=?Decoder()
????img_size?=?(512,?512)
????latent?=?torch.rand(1,4,?img_size[0]//8,?img_size[1]//8)
????jit_model?=?torch.jit.trace(decoder,?latent)
????decoder_model_path?=?"./vae_decoder"?+?'.pt'
????jit_model.save(decoder_model_path)

export_vaedecoder(pipe)

構造轉換腳本

model_transform.py??--model_name?vae_decoder??--input_shape?[[1,4,64,64]]??--model_def?vae_decoder.pt??--mlir?vae_decoder.mlir
model_deploy.py??--mlir?vae_decoder.mlir??--quantize?F16??--processor?bm1684x??--model?vae_decoder_1684x_f16.bmodel

這里完成了所有的模型移植，都得到了相應的bmodel文件，接下來需要將3個部分的模型串起來，進行部署，得到一個完整的stable diffusion。

?

模型部署

構造部署腳本

一些版本依賴信息

diffusers==0.2.4
streamlit==1.15.1
streamlit-drawable-canvas==0.9.2
tokenizers==0.13.2
tqdm==4.64.1
transformers==4.24.0

構建運行時

使用sail構建模型的運行時，請參考https://doc.sophgo.com/sdk-docs/v23.05.01/docs_latest_release/docs/sophon-sail/docs/zh/html/安裝sail，這里為了更好的調用，先封裝了一層。

import?numpy?as?np?
import?time
import?os
import?sophon.sail?as?sail?
class?EngineOV:
????def?__init__(self,?model_path="",?device_id=0)?:
????????self.model_path?=?model_path
????????self.device_id?=?device_id
????????try:
????????????self.model?=?sail.Engine(model_path,?device_id,?sail.IOMode.SYSIO)
????????except?Exception?as?e:
????????????print("load?model?error;?please?check?model?path?and?device?status;")
????????????print(">>>>?model_path:?",model_path)
????????????print(">>>>?device_id:?",device_id)
????????????print(">>>>?sail.Engine?error:?",e)
????????????raise?e
????????sail.set_print_flag(True)
????????self.graph_name?=?self.model.get_graph_names()[0]
????????self.input_name?=?self.model.get_input_names(self.graph_name)
????????self.output_name=?self.model.get_output_names(self.graph_name)

????def?__str__(self):
????????return?"EngineOV:?model_path={},?device_id={}".format(self.model_path,self.device_id)
????
????def?__call__(self,?args):
????????if?isinstance(args,?list):
????????????values?=?args
????????elif?isinstance(args,?dict):
????????????values?=?list(args.values())
????????else:
????????????raise?TypeError("args?is?not?list?or?dict")
????????args?=?{}
????????for?i?in?range(len(values)):
????????????args[self.input_name[i]]?=?values[i]
????????#?import?pdb;?pdb.set_trace()
????????output?=?self.model.process(self.graph_name,?args)
????????res?=?[]

????????for?name?in?self.output_name:
????????????res.append(output[name])
????????return?res

構造pipeline

import?inspect
import?numpy?as?np
#?tokenizer
from?transformers?import?CLIPTokenizer
#?utils
from?tqdm?import?tqdm
from?diffusers?import?LMSDiscreteScheduler
import?cv2
#?engine
from?.npuengine?import?EngineOV

class?StableDiffusionPipeline:
????def?__init__(
????????????self,
????????????scheduler,
????????????model="",
????????????tokenizer="openai/clip-vit-large-patch14",
????????????device="NPU"
????):
????????self.tokenizer?=?CLIPTokenizer.from_pretrained(tokenizer)
????????self.scheduler?=?scheduler
????????#?models
????????#?text?features
????????self.text_encoder?=?EngineOV("./bmodel/text_encoder_fp32.bmodel")
????????#?diffusion
????????self.unet?=?EngineOV("./bmodel/unet_dtype_fix.bmodel",device_id=0)
????????self.latent_shape?=?(4,64,64?)
????????#?decoder
????????self.vae_decoder?=?EngineOV("./bmodel/vae_decoder_fp16.bmodel")
????????#?encoder
????????self.vae_encoder?=?EngineOV("./bmodel/vae_encoder.bmodel")
????????#?self.vae_encoder?=?engine_type(model,?"vae_encoder",?device)
????????self.init_image_shape?=?(512,512)

????def?_preprocess_mask(self,?mask):
????????h,?w?=?mask.shape
????????if?h?!=?self.init_image_shape[0]?and?w?!=?self.init_image_shape[1]:
????????????mask?=?cv2.resize(
????????????????mask,
????????????????(self.init_image_shape[1],?self.init_image_shape[0]),
????????????????interpolation?=?cv2.INTER_NEAREST
????????????)
????????mask?=?cv2.resize(
????????????mask,
????????????(self.init_image_shape[1]?//?8,?self.init_image_shape[0]?//?8),
????????????interpolation?=?cv2.INTER_NEAREST
????????)
????????mask?=?mask.astype(np.float32)?/?255.0
????????mask?=?np.tile(mask,?(4,?1,?1))
????????mask?=?mask[None].transpose(0,?1,?2,?3)
????????mask?=?1?-?mask
????????return?mask

????def?_preprocess_image(self,?image):
????????image?=?cv2.cvtColor(image,?cv2.COLOR_BGR2RGB)
????????h,?w?=?image.shape[1:]
????????if?h?!=?self.init_image_shape[0]?and?w?!=?self.init_image_shape[1]:
????????????image?=?cv2.resize(
????????????????image,
????????????????(self.init_image_shape[1],?self.init_image_shape[0]),
????????????????interpolation=cv2.INTER_LANCZOS4
????????????)
????????#?normalize
????????image?=?image.astype(np.float32)?/?255.0
????????image?=?2.0?*?image?-?1.0
????????#?to?batch
????????image?=?image[None].transpose(0,?3,?1,?2)
????????return?image

????def?_encode_image(self,?init_image):
????????moments?=?self.vae_encoder({
????????????"input.1":?self._preprocess_image(init_image)
????????})
????????mean,?logvar?=?np.split(moments,?2,?axis=1)
????????std?=?np.exp(logvar?*?0.5)
????????latent?=?(mean?+?std?*?np.random.randn(*mean.shape))?*?0.18215
????????return?latent

????def?__call__(
????????????self,
????????????prompt,
????????????init_image?=?None,
????????????mask?=?None,
????????????strength?=?0.5,
????????????num_inference_steps?=?32,
????????????guidance_scale?=?7.5,
????????????eta?=?0.0
????):
????????#?extract?condition
????????tokens?=?self.tokenizer(
????????????prompt,
????????????padding="max_length",
????????????max_length=self.tokenizer.model_max_length,
????????????truncation=True
????????).input_ids
????????
????????
????????#?text_embedding?use?npu?engine?to?inference?
????????text_embeddings?=?self.text_encoder({"tokens":?np.array([tokens])})
????????#?do?classifier?free?guidance
????????if?guidance_scale?>?1.0:
????????????tokens_uncond?=?self.tokenizer(
????????????????"",
????????????????padding="max_length",
????????????????max_length=self.tokenizer.model_max_length,
????????????????truncation=True
????????????).input_ids
????????????#np.save("bins3/tokens_uncond.npy",np.array(tokens_uncond))
????????????uncond_embeddings?=?self.text_encoder({"tokens":?np.array([tokens_uncond])})
????????????#np.save("bins3/uncond_embeddings.npy",uncond_embeddings)
????????????text_embeddings?=?np.concatenate((uncond_embeddings,?text_embeddings),?axis=0)

????????#?set?timesteps
????????accepts_offset?=?"offset"?in?set(inspect.signature(self.scheduler.set_timesteps).parameters.keys())
????????extra_set_kwargs?=?{}
????????offset?=?0
????????if?accepts_offset:
????????????offset?=?1
????????????extra_set_kwargs["offset"]?=?1

????????self.scheduler.set_timesteps(num_inference_steps,?**extra_set_kwargs)

????????#?initialize?latent?latent
????????if?init_image?is?None:
????????????latents?=?np.random.randn(*self.latent_shape)
????????????#?latents?=?np.load("bins2/latents_init.npy")
????????????init_timestep?=?num_inference_steps
????????else:
????????????init_latents?=?self._encode_image(init_image)
????????????init_timestep?=?int(num_inference_steps?*?strength)?+?offset
????????????init_timestep?=?min(init_timestep,?num_inference_steps)
????????????timesteps?=?np.array([[self.scheduler.timesteps[-init_timestep]]]).astype(np.long)
????????????noise?=?np.random.randn(*self.latent_shape)
????????????latents?=?self.scheduler.add_noise(init_latents,?noise,?timesteps)[0]

????????if?init_image?is?not?None?and?mask?is?not?None:
????????????mask?=?self._preprocess_mask(mask)
????????else:
????????????mask?=?None

????????#?if?we?use?LMSDiscreteScheduler,?let's?make?sure?latents?are?mulitplied?by?sigmas
????????if?isinstance(self.scheduler,?LMSDiscreteScheduler):
????????????latents?=?latents?*?self.scheduler.sigmas[0]
????????#?#np.save("latents2.npy",?latents)
????????#?prepare?extra?kwargs?for?the?scheduler?step,?since?not?all?schedulers?have?the?same?signature
????????#?eta?(η)?is?only?used?with?the?DDIMScheduler,?it?will?be?ignored?for?other?schedulers.
????????#?eta?corresponds?to?η?in?DDIM?paper:?https://arxiv.org/abs/2010.02502
????????#?and?should?be?between?[0,?1]
????????accepts_eta?=?"eta"?in?set(inspect.signature(self.scheduler.step).parameters.keys())
????????extra_step_kwargs?=?{}
????????if?accepts_eta:
????????????extra_step_kwargs["eta"]?=?eta

????????t_start?=?max(num_inference_steps?-?init_timestep?+?offset,?0)
????????for?i,?t?in?tqdm(enumerate(self.scheduler.timesteps[t_start:])):
????????????#?expand?the?latents?if?we?are?doing?classifier?free?guidance
????????????latent_model_input?=?np.stack([latents,?latents],?0)?if?guidance_scale?>?1.0?else?latents[None]
????????????if?isinstance(self.scheduler,?LMSDiscreteScheduler):
????????????????sigma?=?self.scheduler.sigmas[i]
????????????????latent_model_input?=?latent_model_input?/?((sigma**2?+?1)?**?0.5)

????????????#?unet?model?we?have?modified,?the?`t`?is?batch?sequence,?so?we?need?to?expand?the?t
????????????#?t:?(1)?->?(batch_size)?
????????????batch_size?=?latent_model_input.shape[0]
????????????newt?=?np.tile(t,?(batch_size)).astype(np.long)
????????????
????????????noise_pred?=?self.unet({
????????????????"input.1":?latent_model_input,
????????????????"timesteps.1":?newt,
????????????????"input0.1":?text_embeddings
????????????})
????????????
????????????#?perform?guidance
????????????if?guidance_scale?>?1.0:
????????????????noise_pred?=?noise_pred[0]?+?guidance_scale?*?(noise_pred[1]?-?noise_pred[0])

????????????#?compute?the?previous?noisy?sample?x_t?->?x_t-1
????????????if?isinstance(self.scheduler,?LMSDiscreteScheduler):
????????????????latents?=?self.scheduler.step(noise_pred,?i,?latents,?**extra_step_kwargs)["prev_sample"]
????????????else:
????????????????latents?=?self.scheduler.step(noise_pred,?t,?latents,?**extra_step_kwargs)["prev_sample"]

????????????#?masking?for?inapinting
????????????if?mask?is?not?None:
????????????????init_latents_proper?=?self.scheduler.add_noise(init_latents,?noise,?t)
????????????????latents?=?((init_latents_proper?*?mask)?+?(latents?*?(1?-?mask)))[0]
????????
????????latents?=?1?/?0.18215?*?latents
????????image?=?self.vae_decoder({"input.1":?np.expand_dims(latents,?0)})
????????#np.save("bins3/image.npy",?image)
????????#?convert?tensor?to?opencv's?image?format
????????image?=?(image?/?2?+?0.5).clip(0,?1)
????????image?=?(image[0].transpose(1,?2,?0)[:,?:,?::-1]?*?255).astype(np.uint8)
????????return?image

構造運行腳本

#?--?coding:?utf-8?--`
import?argparse
import?os
import?random
import?streamlit?as?st
from?streamlit_drawable_canvas?import?st_canvas
import?numpy?as?np
import?cv2
from??PIL?import?Image,?ImageEnhance
import?numpy?as?np
#?engine
from?stable_diffusion?import?StableDiffusionPipeline
#?scheduler
from?diffusers?import?PNDMScheduler
def?run(engine):
????st.header("SOPHON?深度學習?ZOOM")
????with?st.form(key="request"):
????????with?st.sidebar:
????????????prompt?=?st.text_area(label='Enter?prompt(please?use?English)')

????????????with?st.expander("Initial?image"):
????????????????init_image?=?st.file_uploader("init_image",?type=['jpg','png','jpeg'])
????????????????stroke_width?=?st.slider("stroke_width",?1,?100,?50)
????????????????stroke_color?=?st.color_picker("stroke_color",?"#00FF00")
????????????????canvas_result?=?st_canvas(
????????????????????fill_color="rgb(0,?0,?0)",
????????????????????stroke_width?=?stroke_width,
????????????????????stroke_color?=?stroke_color,
????????????????????background_color?=?"#000000",
????????????????????background_image?=?Image.open(init_image)?if?init_image?else?None,
????????????????????height?=?512,
????????????????????width?=?512,
????????????????????drawing_mode?=?"freedraw",
????????????????????key?=?"canvas"
????????????????)

????????????if?init_image?is?not?None:
????????????????init_image?=?cv2.cvtColor(np.array(Image.open(init_image)),?cv2.COLOR_RGB2BGR)

????????????if?canvas_result.image_data?is?not?None:
????????????????mask?=?cv2.cvtColor(canvas_result.image_data,?cv2.COLOR_BGRA2GRAY)
????????????????mask[mask?>?0]?=?255
????????????else:
????????????????mask?=?None

????????????num_inference_steps?=?st.select_slider(
????????????????label='num_inference_steps',
????????????????options=range(1,?150),
????????????????value=32
????????????)

????????????guidance_scale?=?st.select_slider(
????????????????label='guidance_scale',
????????????????options=range(1,?21),
????????????????value=7
????????????)

????????????strength?=?st.slider(
????????????????label='strength',
????????????????min_value?=?0.0,
????????????????max_value?=?1.0,
????????????????value?=?0.5
????????????)

????????????seed?=?st.number_input(
????????????????label='seed',
????????????????min_value?=?0,
????????????????max_value?=?2?**?31,
????????????????value?=?random.randint(0,?2?**?31)
????????????)

????????????generate?=?st.form_submit_button(label?=?'Generate')

????????if?prompt:
????????????np.random.seed(seed)
????????????image?=?engine(
????????????????prompt?=?prompt,
????????????????init_image?=?init_image,
????????????????mask?=?mask,
????????????????strength?=?strength,
????????????????num_inference_steps?=?num_inference_steps,
????????????????guidance_scale?=?guidance_scale
????????????)
????????????st.image(Image.fromarray(cv2.cvtColor(image,?cv2.COLOR_BGR2RGB)),?width=512)

@st.cache(allow_output_mutation=True)
def?load_pipeline(args):
????scheduler?=?PNDMScheduler(
????????beta_start=args.beta_start,
????????beta_end=args.beta_end,
????????beta_schedule=args.beta_schedule,
????????skip_prk_steps?=?True,
????????tensor_format="np"
????)
????pipeline?=?StableDiffusionPipeline(
????????model?=?args.model,
????????scheduler?=?scheduler,
????????tokenizer?=?args.tokenizer
????)
????return?pipeline


if?__name__?==?"__main__":
????parser?=?argparse.ArgumentParser()
????#?pipeline?configure
????parser.add_argument("--model",?type=str,?default="bes-dev/stable-diffusion-v1-4-openvino",?help="model?name")
????#?scheduler?params
????parser.add_argument("--beta-start",?type=float,?default=0.00085,?help="LMSDiscreteScheduler::beta_start")
????parser.add_argument("--beta-end",?type=float,?default=0.012,?help="LMSDiscreteScheduler::beta_end")
????parser.add_argument("--beta-schedule",?type=str,?default="scaled_linear",?help="LMSDiscreteScheduler::beta_schedule")
????#?tokenizer
????parser.add_argument("--tokenizer",?type=str,?default="openai/clip-vit-large-patch14",?help="tokenizer")

????try:
????????args?=?parser.parse_args()
????except?SystemExit?as?e:
????????#?This?exception?will?be?raised?if?--help?or?invalid?command?line?arguments
????????#?are?used.?Currently?streamlit?prevents?the?program?from?exiting?normally
????????#?so?we?have?to?do?a?hard?exit.
????????os._exit(e.code)

????engine?=?load_pipeline(args)
????run(engine)

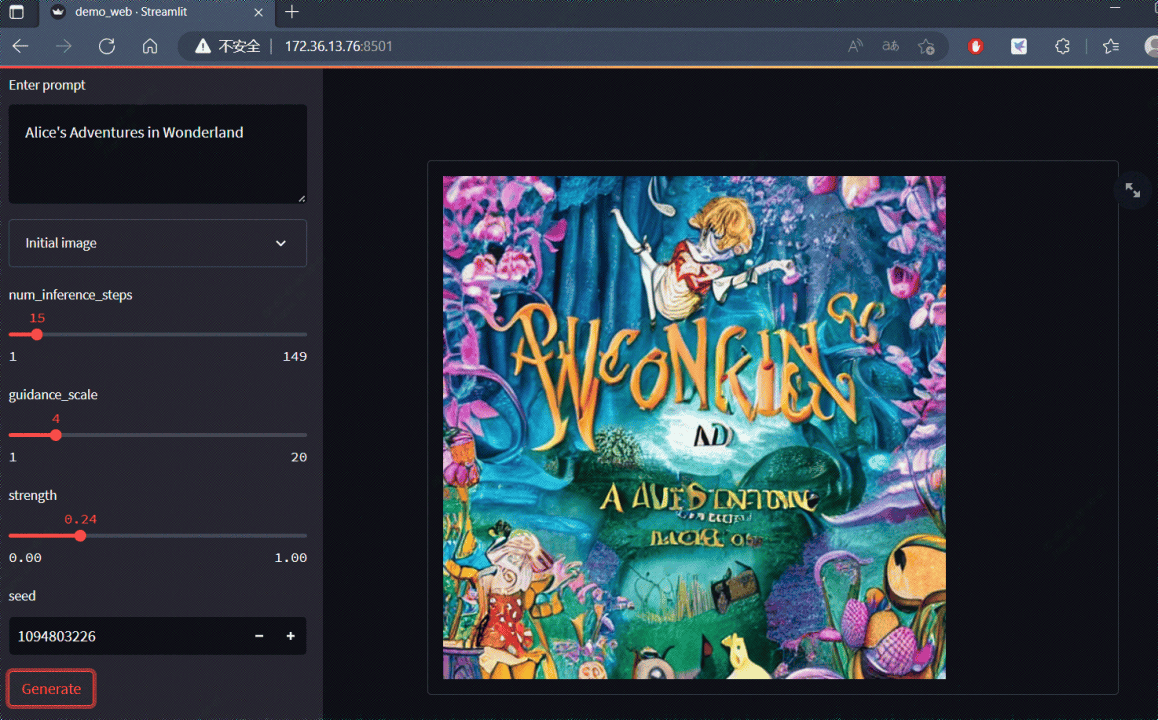

這里可以開啟一個streamlit的服務，通過瀏覽器訪問。

?
